Hook Up Instructions
ColecoVision, Intellivision, and Atari Consoles

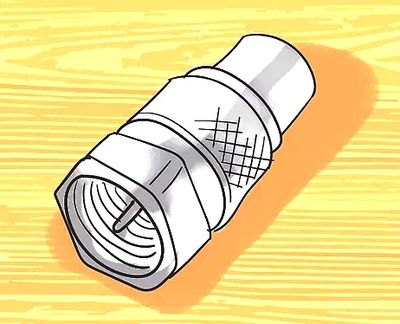

The easiest way to connect your console to your TV is with the provided Type-F adapter. This adapter allows you to bypass the use of the traditional switchbox.
Step 1
First, attach one end of the RF output cable into the appropriate output on the console and insert the other end into the back of Type-F connector.
Step 2
Screw in Type-F connector into the antenna input on the back of your television. Make sure all connections are snug.
Step 3
Your console will output to CH 3 or 4. You will probably need to run a CH scan through your television’s menu. If prompted whether to allow Analog signal, choose yes. If prompted whether to add CHs 3 and 4, choose yes. Your system is now ready to play on CH 3 or 4.
Tip:
Make sure your system is plugged in and turned ON before running channel scan. If image quality doesn’t seem right, try adjusting the placement of RF cable. (RF signal can be vulnerable to interference). If you have any issues, don’t hesitate to contact us directly!!
